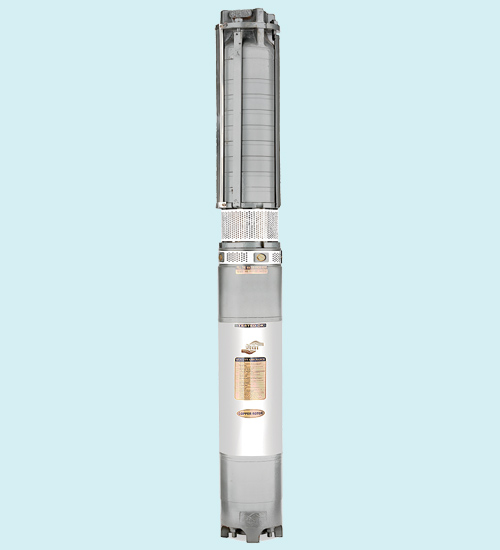

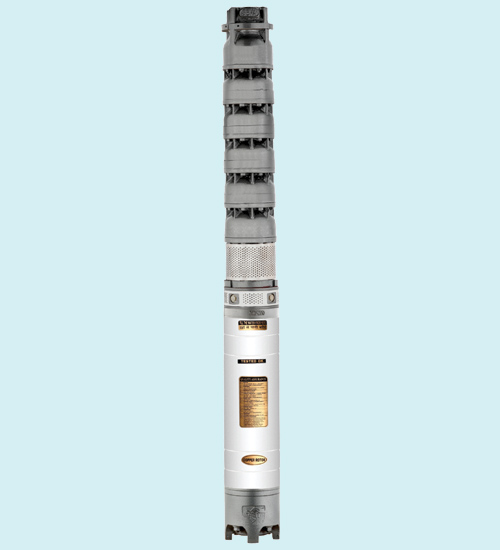

V8 Submersible Pumpset
Silent Features
-
- Dynamic balanced rotating parts to ensure minimum noise and vibration free operation.
- Starts easily at low voltage.
- Accurately machined on CNC machine to get reliable performance and long life.
- NRV are provided for reducing back pressure.
Applications
- Rural water supply from borewell, large irrigation.
- Civil & industrial water supply, solar pumping system.
Specifications
| Power Range | 7.5HP To 85HP Three Phase |
| Discharge Range | Upto 3550 LPM |
| Head range | Upto 462 MTR |
| Speed(RPM) | 2880 |
| Version | 350-415Volts, 50HZ, A/C-3Phase |
Material of Construction Motor
| Name of Parts | Material Used |
|---|---|
| Shaft | SS 420 As per IS:1570 |
| Bearing Bush | Leaded Bronze (LTB-4) As per IS:318 |
| Thurst Bearing | Silicon carbide/ Carbon |
| Casting Parts | CI FG 200 As per IS:210 |
| Rotor | Copper Rotor |
| Stamping | Silicon Steel As per IS:648 |
| Stater Shell | SS 202 As per IS:6911 |
| Winding Wire | EC Copper (99.96%) As per IS:613 |
Material of Construction Pump
| Name of Parts | Material Used |
|---|---|
| Impeller | SS 410 As per IS:1570 |
| Sleeve | SS 410 As per IS:1570 with hard chrome plating |
| Stage Casting | CI FG 200 As per IS:1570 |
| Pump Shart | SS 410 As per IS:1570 |
| Casting Part | CI FG 200 As per IS:210 |
| Bush | Leaded bronze (LTB-4) As per IS:318 |
