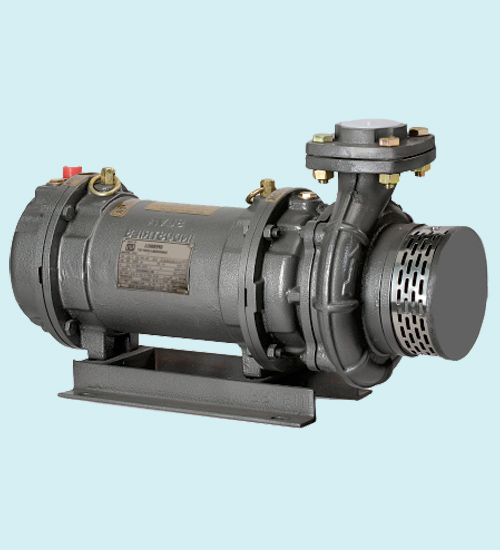

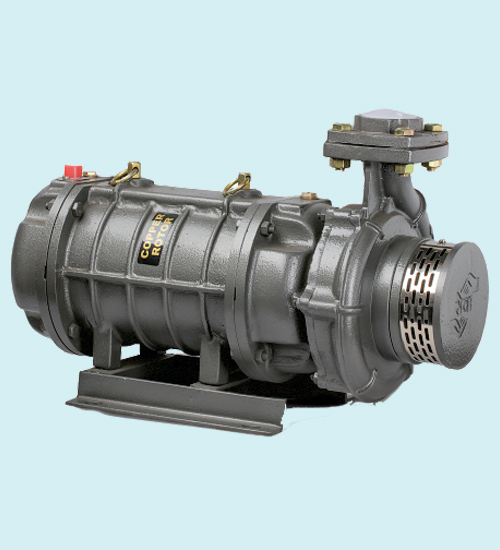

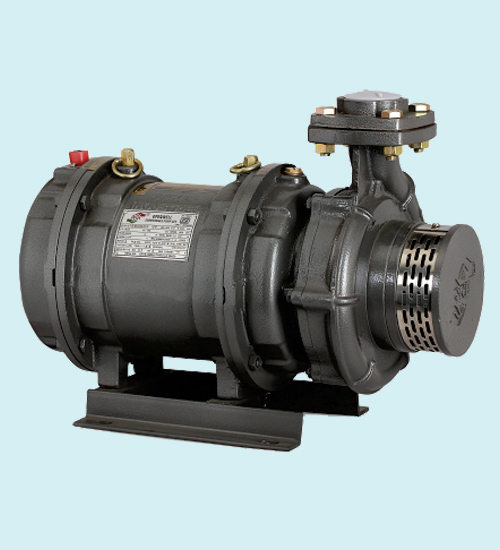

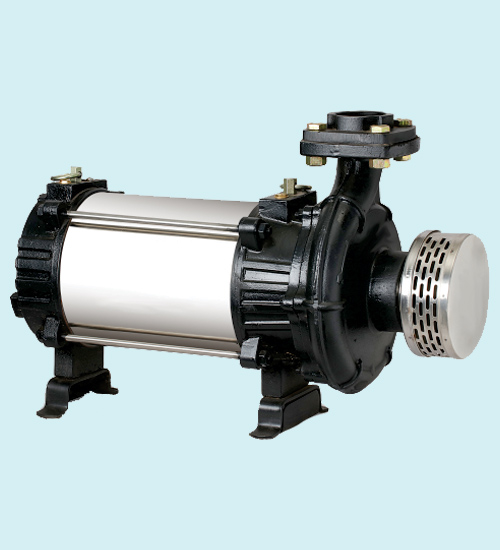

Openwell Pumpset
Silent Features
- Easy Installation Requiring No Foundation and pump house Arrangements.
- Design For wide voltage Range.
- Maintenance Free Operating due to water lubricated bearing.
- High Operation efficiency resulting in lower power Consummation.
Applications
- Lift From Rivers And Canels irrigation.
- Domestic Water Supply To Multistore.
- NENO Swimming Pool & Fountains.
- Water Supply in Commercial Establishment For ETP, STP & WTP Purpose.
Specifications
| Power Range | 0.5HP To 5.0HP Single Phase 1.0HP To 10HP Three Phase |
| Discharge Range | Upto 2050 LPM |
| Head range | Upto 60 MTR |
| Speed(RPM) | 2880 |
| Version | 180-230Volts, 50HZ, A/C-1Phase 250-340Volts, 50HZ, A/C-2Phase 350-415Volts, 50HZ, A/C-3Phase |
Material of Construction
Stater ShellCast Iron FG 200 / SS
| Name of Parts | Material Used |
|---|---|
| Shaft | SS 410 As per IS:1570 |
| Bearing Bus | Leaded Bronze (LTB-4) As per IS:318 |
| Thrust Bearing | Ferado Fiber / Carbon |
| Casting Parts | CI FG 200 As per IS:210 |
| Rotor | Copper / High Pressure Diecast |
| Stamping | Sillicon Steel As per IS:648 |
| Winding Wire | EC Copper (99.96%) As per IS:613 |
